Category: Bridge Cutters
 |
|
||||||||||||||||
Description

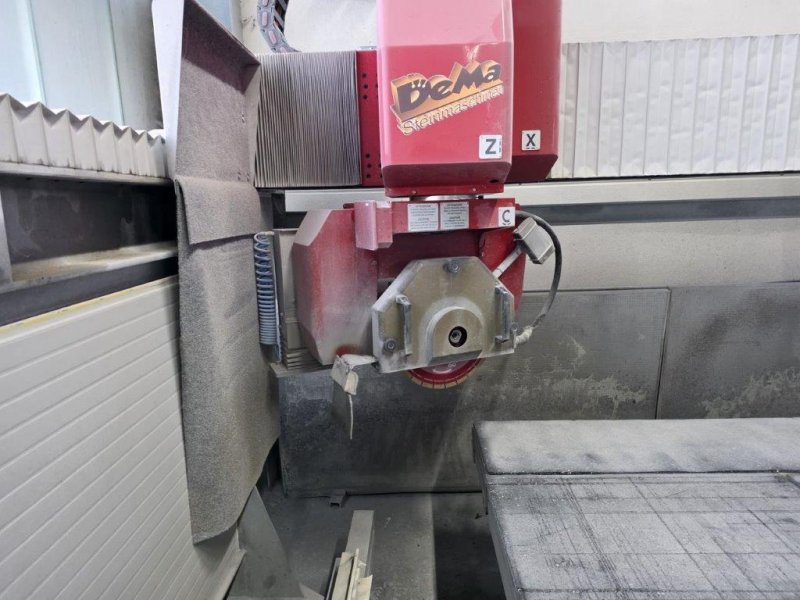

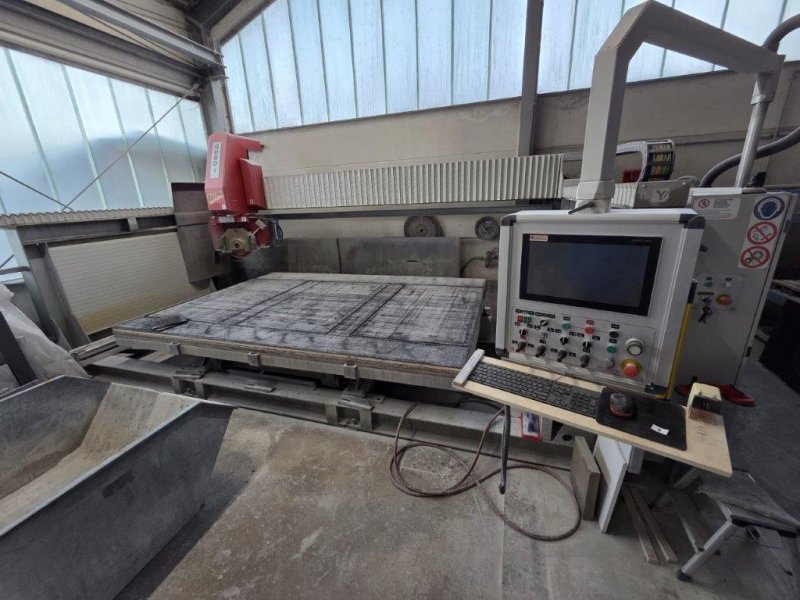

5-Axis- CNC machine
X-Axis : 3.700 mm
Y-Axis : 2.100 mm;
Z-Axis : 370 mm
- Motor 16,5 kW with variable speed 800-4.500 U/min.

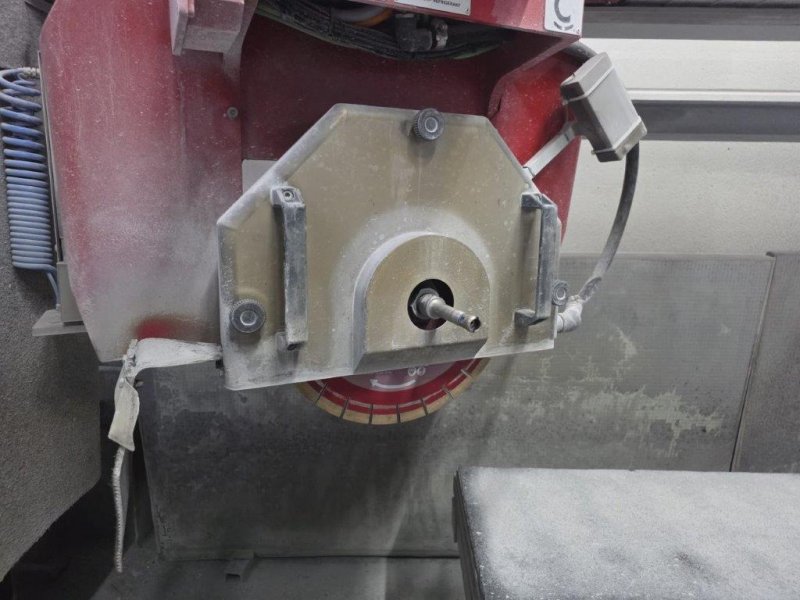

- Saw blade min. Ø 350 mm / max. Ø 625 mm
- tilting table 3.500 x 2.000 mm
- Automatice tilting head 0-90°
- Automatice turning head 0-362°
- camera

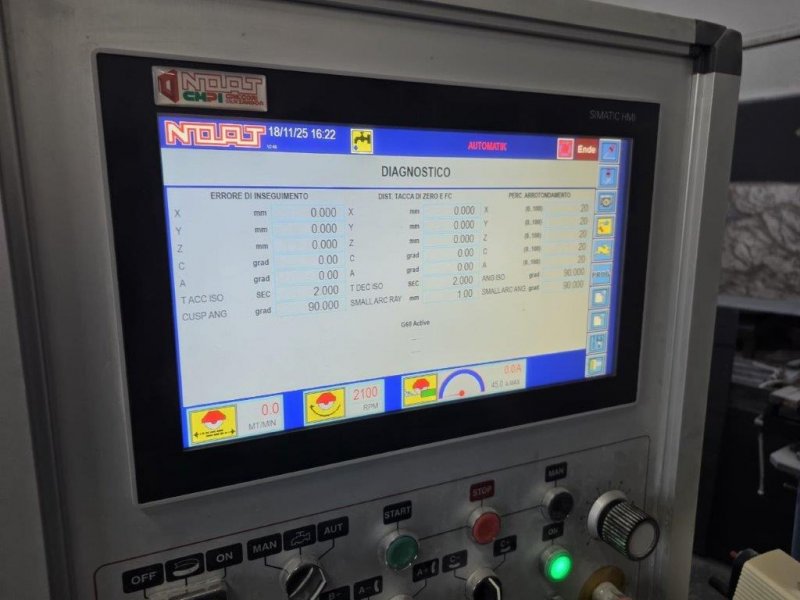

-19" Touchscreen
- laser
- machine for installation on steel foundation
- total weight 4800 kg
- required space 7100 x 4.100 x 2760 mm
X-Axis : 3.700 mm
Y-Axis : 2.100 mm;
Z-Axis : 370 mm
- Motor 16,5 kW with variable speed 800-4.500 U/min.
- Saw blade min. Ø 350 mm / max. Ø 625 mm
- tilting table 3.500 x 2.000 mm
- Automatice tilting head 0-90°
- Automatice turning head 0-362°
- camera
-19" Touchscreen
- laser
- machine for installation on steel foundation
- total weight 4800 kg
- required space 7100 x 4.100 x 2760 mm
More pictures
SALES CONDITIONS
- Prices: net, ex works, without dismantling, if not mentioned
- Delivery: immediately or on request, subject to prior sale, without tools and without foundation screws
- Payment: net for delivery
- Installation: on request
- Guarantee: no guarantee, machine like it is, without any warranty on parts and function
Technical data's and indications non-committal !We reserve the right to change technical data's if necessary, or to change the prices.
